Bonded composite pipe

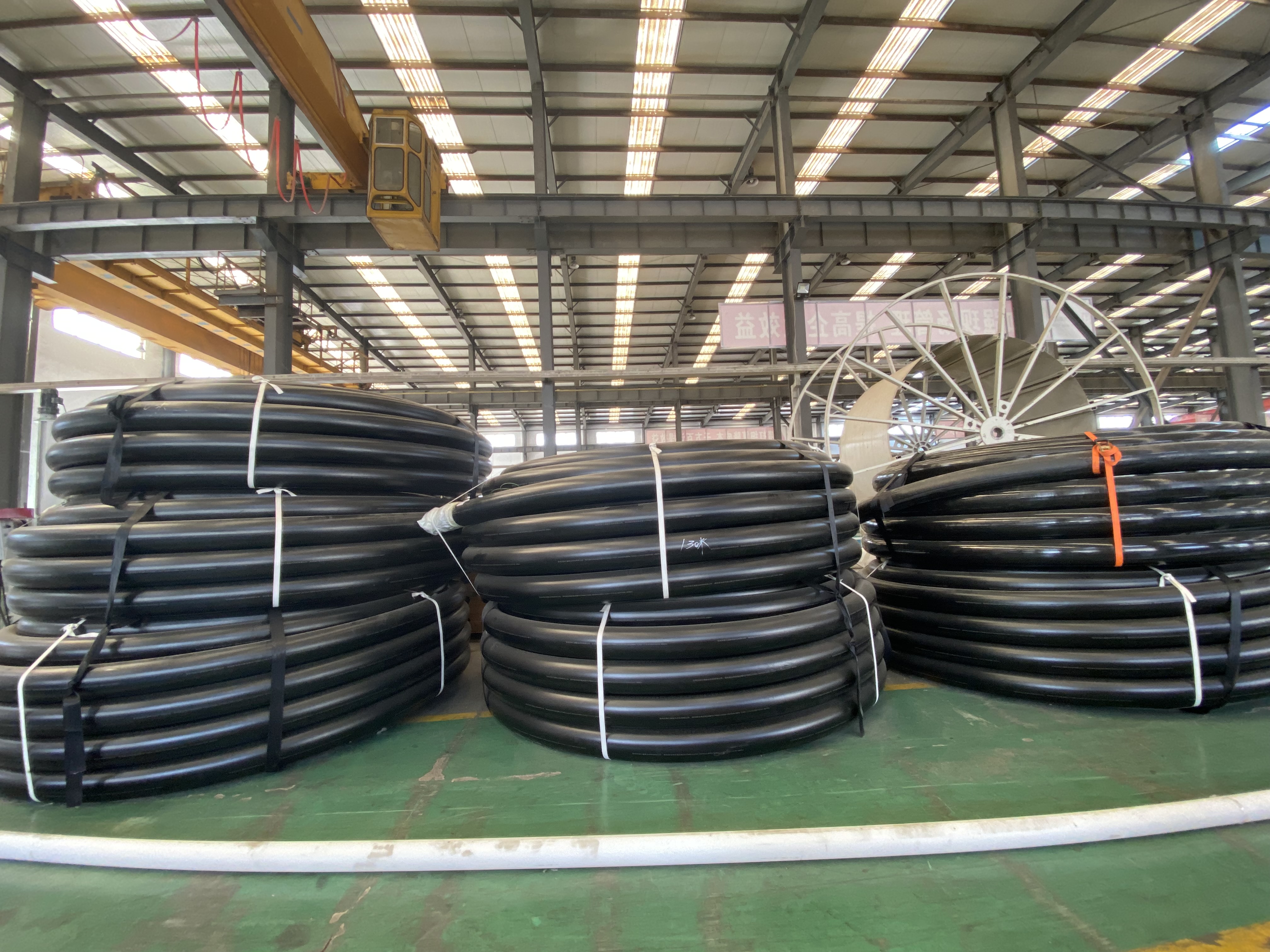

Large diameter continuous fiber reinforced bonded flexibte composite pipe

Bonded solid wall continuous composite pipe is an updated product of traditional non-metallic pipes. The inner transmission layer, reinforcement layer, and outer protective layer are integrated into a solid wall pipe structure through a special process, which is formed by fusion or bonding between layers and adjacent layers to form a non relative motion integrated composite solid wall structure. The inner transmission layer and outer protective layer are generally formed by extrusion of polymer, while the reinforced layer of bonded composite pipes is usually formed by heating and winding with twisted coated polyester filament, carbon fiber filament, aramid prepreg tape, glass fiber prepreg tape, etc. Thoroughly solved the problems of traditional non bonded flexible composite pipes with high temperature resistance, high pressure resistance, large diameter, and non-metallic joint connection.

It is mainly used for various industrial pipelines and municipal pipelines, various gathering and transportation processes and pipe networks (oil, gas, water) of oil and gas fields, fluid transportation of sour oil and gas fields containing CO2, H2S, etc., oilfield sewage transportation, high-pressure water injection, high-pressure alcohol injection, Shale gas transportation, fracturing flowback fluid transportation, salt chemical brine transportation, pulverized coal slurry transportation, mining pipelines, corrosive fluid industrial pipelines, municipal water supply and drainage pipelines, and high-temperature thermal pipelines.

It has the characteristics of high pressure resistance, high temperature resistance, corrosion resistance, continuity, large diameter, non-metallic joints, high barrier, gas penetration resistance, anti swelling, impact resistance, tensile resistance, wear resistance, anti-static, flame retardant, long service life, light weight, complete pipe fittings, and easy installation.

Pipe specification: DN40mm-500mm

Nominal pressure: 2.5MPa-32MPa

Medium temperature: -40 to 90 ℃

Laying method: buried or ground laying

Connection method: non-metallic electric fusion pipe fittings, metal attachment threaded joints, full bore internal accounting type

        Baoji Tianlian Huitong Composite Materials Co., Ltd. is focused on providing specialized continuous composite pipes for the energy industry. The company is a national high-tech enterprise and a national-level specialized, refined, and new "little giant" enterprise. It has leading comprehensive production capacity and technology research and development strength in China.

        The company is a provincial-level technology center in Shaanxi Province and has long-term cooperation with research institutions such as the China Petroleum Engineering Materials Research Institute (Xi'an Pipe Institute), Aerospace 43rd Institute of China Aerospace Science and Industry Corporation, Zhejiang University, China University of Petroleum, Chang'an University, and Xi'an Shiyou University, to jointly conduct research and development of non-metallic composite material process technology, polymer-modified materials, and supporting equipment. As of 2022, the company has obtained 26 technology patents. By December 2022, it has accumulated 8,000 kilometers of experience in manufacturing, installation, and operation of flexible composite pipes.

        The company is a Class A supplier of China Petroleum and a Class A credit supplier of Sinopec. It is also a network supplier of State Energy Group, China National Coal Group, and Shaanxi Coal Group. The company has a market share of over 20% in the domestic oil and gas field market. Its products have been widely used in major oil and gas fields in China and overseas regions such as the EBS oil field in Iraq and the Akdala oil field in Kazakhstan, and have received unanimous praise from customers.
