UHMWPE PVC Polyethylene Pipe Gas Line 6mm Thickness Underground

Ask Lasest Price
Brand Name :	tianlianhuitong
Model Number :	Guest custom-4
Supply Ability :	50000 Meter/Meters per Month
Price :	$0.20/meters >=500 meters

Add to Cart

Product Details
Company Profile

UHMWPE PVC Polyethylene Pipe Gas Line 6mm Thickness Underground

Product Paramenters

spec	bore size	Average outer diameter	minimum wall thickness	Wall thickness tolerance	nominal pressure
	mm	mm	mm	mm	MPa
1. 5in	40	60	10.0	+ 0. 5 0	2. 5
		62	11. 0		6. 3
		65	12. 5		12. 5
		67	13. 5		16. 0
		69	14. 5		20. 0
		70	15. 0		25. 0
		73	16. 5		28.0
		78	19.0		32. 0
2in	50	67	8. 5		2. 5
		69	9. 5		6. 3
		74	12. 0		12. 5
		75	12. 5		16. 0
		78	14. 0		20. 0
2in	50	79	14. 5	+ 0. 5 0	25. 0
		80	15.0		28. 0
		82	16.0		32. 0
2. 5in	65	90	12. 5	+ 0. 6 0	2. 5
		92	13. 5		6. 3
		95	15.0		12. 5
		97	16.0		16. 0
		98	16. 5		20. 0
		99	17.0		25. 0
3in	75	94	9. 5		2. 5
		96	10. 5		6. 3
		101	13.0		12. 5
		107	16.0		16. 0
		111	18.0		20. 0
		112	18. 5		25. 0
4in	102	122	10.0	+ 0. 6 0	2. 5
		125	11.5		4.0
		128	13.0		6. 3
		131	14. 5		10.0
		132	15.0		12. 5
		136	17.0		18. 0
5in	125	152	13. 5	0.7 0	2. 5
		153	14.0		4. 0
		154	14. 5		6. 3
		158	16. 5		10.0
		160	17. 5		12. 5
6in	150	178	14.0	+ 0. 8 0	6. 3
		180	15.0		8. 0
		185	17. 5		10.0

Products Description

UHMWPE PVC Polyethylene Pipe Gas Line 6mm Thickness Underground

Title goes here.

Inner layer: ultra high molecular material (PE100, PE-RT(XRT70), PEX (Lianqiao S1) UHMW-PE(Yanshan Petrochemical 2.5 million),
PA11/12, PVDF (90165))
Interlayer: High strength non-metallic fibers
Cover: PE polymer material
Pipe specification: DN40mm-250mm
Nominal pressure: 2.5Mpa - 32Mpa
Medium temperature: ≤80℃
Execution standard: SY/T 6662.5-2014

2) Scope of application
It is mainly used in oil and gas field gathering and transportation pipeline, high pressure alcohol injection pipeline, water
injection pipeline, sewage transmission pipeline, shale gas centralized water supply pipeline, fracturing flowback fluid recovery
and utilization pipeline, coal-bed methane transportation, brine transportation, chemical pipeline, hot spring water transportation, etc.
(3) Performance characteristics
① Strong wear resistance
Its wear resistance is 2.3 times that of PE and 4-7 times that of carbon steel. It is suitable for medium conveying with high sediment content, such as heavy oil pipeline, sewage conveying pipeline and slurry conveying pipeline, etc.
② smooth and no scaling
Small roughness, smooth surface, small friction coefficient, friction coefficient of 0.05~0.10 under water and oil lubrication,
not easy to scale, suitable for high salinity, high wax heavy oil transportation, sewage transportation, water injection pipeline, etc.

③Extremely high impact resistance
The impact strength of the pipe is more than 120kJ /m2, which is 10 times that of high-density polyethylene. The impact strength of the pipe is the highest among the existing plastics, and it still has quite high impact strength even at -70℃.
④ medium compatibility is good
Ultra-high molecular weight polyethylene is a kind of saturated molecular group structure, chemical stability, its water
absorption rate is the least in the engineering plastics, so it has good oil, gas, water medium compatibility performance, as well as good oil and gas swelling resistance.

⑤Excellent corrosion resistance
In addition to a few strong acid at high temperature has a slight corrosion, in the concentration of less than 80% of concentrated
hydrochloric acid, concentration of less than 75% of sulfuric acid, concentration of less than 20% of nitric acid performance is quite stable.

⑥Long aging resistance life
Anti-aging performance is better than high density polyethylene about 1/4, buried for 50 years, its mechanical properties only decreased by 20%.

⑦ Stress resistance and fatigue resistance
The environmental stress cracking resistance >4000h, the elastic modulus is more than 1.5 times that of high density polyethylene (PE100), the fatigue strength > 500,000 times.

serial number	project	performance requirement	test method
1	Molecular weight, 104	≥100	ASTMD1601
2	Density, g/cm³	≥0.930	GB/T1033.1
3	moisture content mg/kg	≤150	GB/T6283
4	distortion temperature °C	≥60	GB/T1634.1
5	charpy impact strength kJ/m²	≥80	GB/T1043.1
6	tensile breaking strength MPa	≥24	GB/T1040.2
7	elongation at break ％	≥300	GB/T1040.2
8	Induction time of oxidation (200°C), min	>20	GB/T17391
9	friction coefficient	0.07~0.11	ASTMD1894
10	Wear rate of mortar	≤0.4	QB/T2668

Company Profile

Title goes here.

Baoji TIANLIAN Huitong composite material Co., Ltd. is located in the high tech Zone of Baoji City, Shaanxi Province. It is a national high tech enterprise, a gazelle enterprise in Baoji City, a small giant enterprise specialized in special new products in Shaanxi Province, and a "little giant" enterprise specialized in special new products by the Ministry of industry and information technology of the people's Republic of China. The company has long cooperated with many scientific research institutions such as PetroChina Xi'an pipe material institute, 43 Institutes of aerospace, Chang'an University, Xi'an University of petroleum, Dalian University of technology, etc. to jointly carry out the research and development of non-metallic composite material technology, polymer modified materials and supporting equipment. The products have 21 composite pipe technology patents, Among them, the technology of continuous composite pipe with non-metallic joint fills the gap in China. At present, the company has obtained A-class special pressure pipe component manufacturing license, and has passed API 15s Qi certification, ISO9001 certification, 14001 certification and 18001 certification. It is an AAA credit rating enterprise and a contract abiding enterprise. PetroChina grade a suppliers, Sinopec network suppliers, Zhenhua oil cooperation suppliers. The company's core products mainly include flexible composite plastic high-pressure transmission pipe, reinforced ultra-high polymer continuous composite pipe, ultra-high polymer lined oil pipe, high temperature resistant continuous composite pipe, high barrier natural gas high-pressure flexible composite pipe, special bonded solid wall continuous composite pipe for oil and gas field, special flexible composite pipe for shale gas / natural gas transmission (acid gas field, gas field) There are 21 composite pipe technology patents for underground bonded solid wall coiled tubing, coal mine fiber reinforced polyethylene liquid pipe, polyurethane hose, etc. Products are suitable for petroleum, chemical, mining, municipal, thermal, fire and other fields. At present, in Changqing, Yanchang, Tuha, Qinghai, Zhongyuan, Shengli, Tarim, Northwest Bureau, Karamay, southwest oil and gas field, Sichuan shale gas, Shenhua coalbed methane and other oil and gas fields, Zoomlion coal, Asian AmericanContinental coalbed methane, orean coalbed methane, Changning shale gas, Sichuan shale gas of great walldrilling, Chuanqing drilling shale gas, Ningxia Coal Geological Bureau, EBS oilfield of Iraq It has been widely used in aktobin oilfield of Kazak.

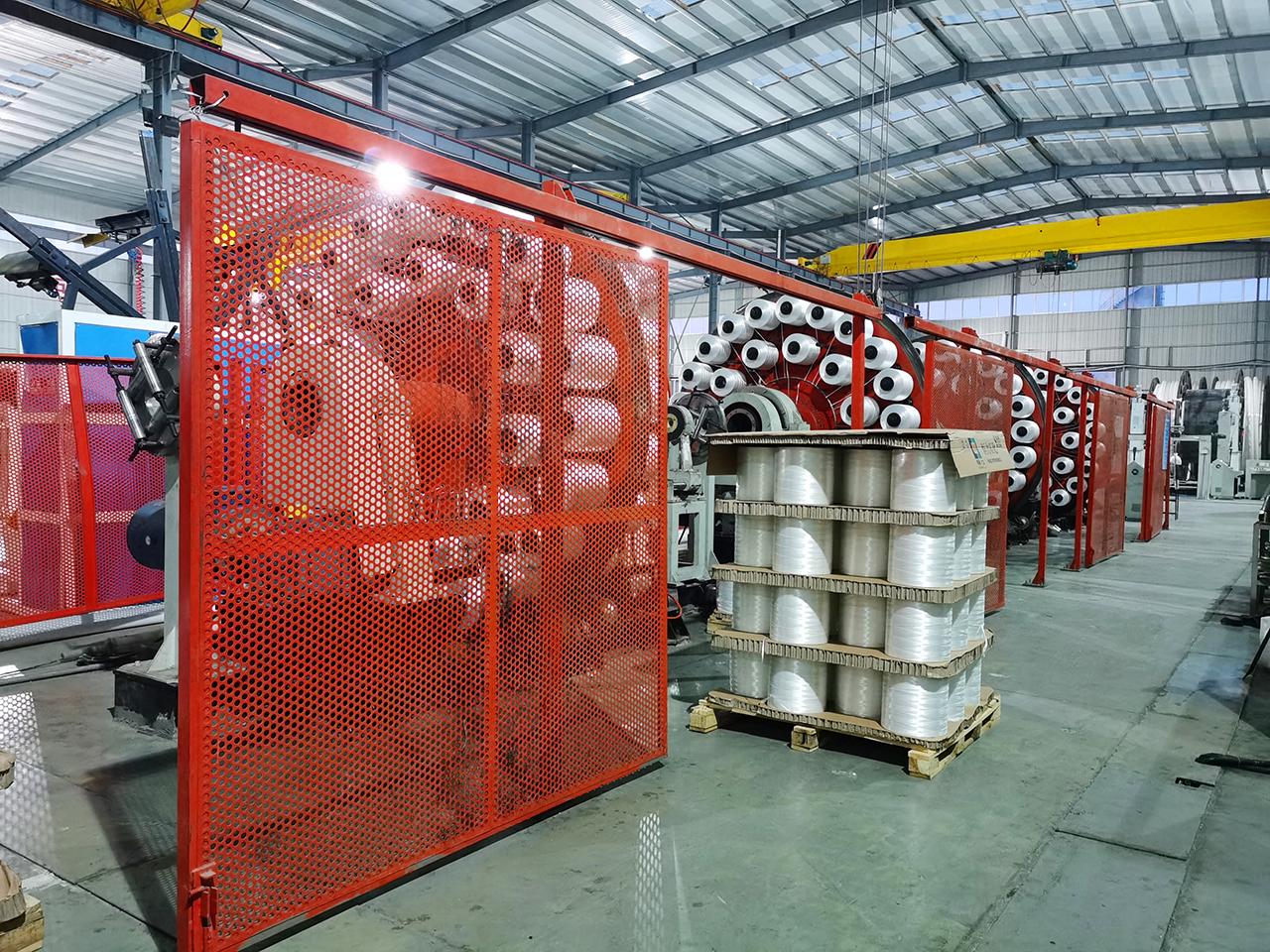

Plant and Workshop

exhibition

Customer visit chart

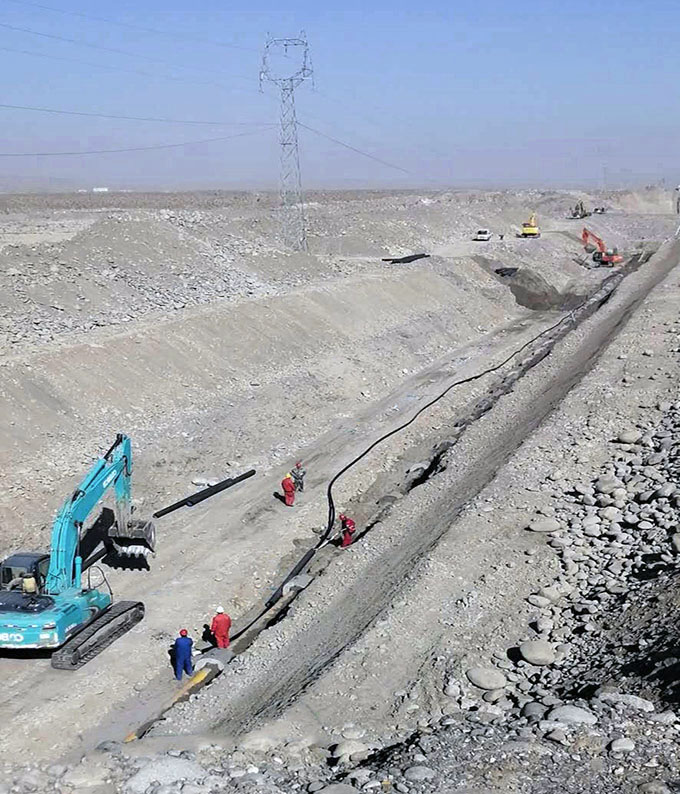

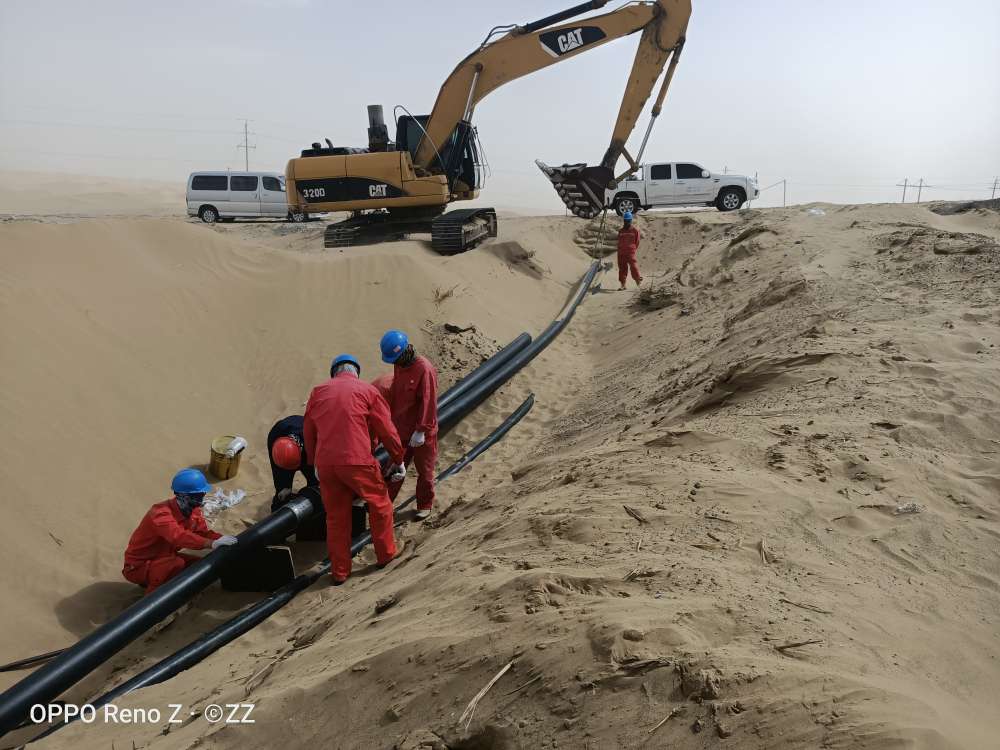

Tarim oilfield

northwest bureau

Tuha Oilfield

Associated gas pipeline of CNPC Huabei Oilfield

Changqing Oilfield

Yanchang Oilfield

Product packaging

FAQ

1.What's your advantage? A: Honest business with competitive price and professional service on export process. 2. How I believe you? A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. 3.Can you give warranty of your products? A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. 4.Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time.Baoji TIANLIAN Huitong composite material Co., Ltd. is located in the high tech Zone of Baoji City, Shaanxi Province. 5.How about the delivery time? A: Within 35-45 days after we confirm you requirement. 6.What kind of payment does your company support? A: T/T, 100% L/C at sight, Cash are all accepted if you have other payment,please contact me.
